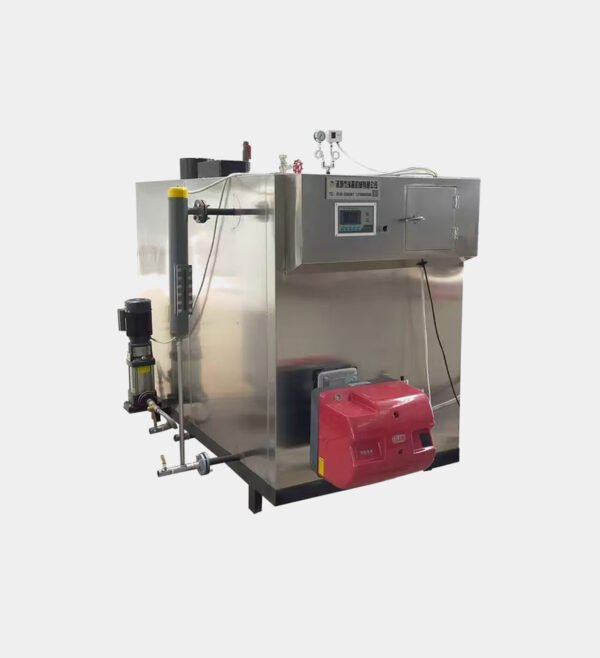

500KG/H AUTOMATIC GAS / OIL FIRED STEAM GENERATOR

500KG/H AUTOMATIC GAS / OIL FIRED STEAM GENERATOR

TECHNICAL SPECIFICATIONS

Parameter	Details
Rated Evaporation Capacity	500 KG / Hour [cite: 1]
Fuel Type Options	Natural Gas (LNG/CNG), LPG, Diesel / Light Oil, Dual-Fuel [cite: 1]
Working Steam Pressure	0.7 MPa (7 Bar) / 1.0 MPa (10 Bar) [cite: 1]
Steam Temperature Range	171°C – 184°C (Saturated Steam) [cite: 1]
Thermal Efficiency	Up to 98% (With integrated energy saver/economizer) [cite: 1]
Startup Time	3 – 5 Minutes (Fast Steam Generation) [cite: 1]
Burner Architecture	Original Italian Riello / Baltur (Fully Automatic) [cite: 1]
Control System	Industrial PLC with LCD Touch Screen Interface [cite: 1]
Power Supply	220V/380V/440V (50/60Hz 3-Phase Fully Customizable) [cite: 1]
Main Structure Material	Vertical Once-Through Design / High-Grade Boiler Steel & SUS304 Enclosure [cite: 1]

---

CORE PERFORMANCE ADVANTAGES

• HIGH-EFFICIENCY ONCE-THROUGH TECHNOLOGY: The vertical water tube structure allows for rapid heat absorption [cite: 1]. It produces high-quality steam within 3 to 5 minutes from a cold start, eliminating the long pre-heating cycles required by traditional fire-tube boilers and drastically cutting daily fuel waste [cite: 1].

• INTELLIGENT ITALIAN COMBUSTION: Equipped with original imported Italian burners (Riello or Baltur) [cite: 1]. The system automatically adjusts the flame intensity and air-fuel ratio based on your real-time steam demand, ensuring optimal fuel consumption with zero manual intervention [cite: 1].

• INTEGRATED ECO-CONDESER: Features a built-in energy saver/economizer that captures waste heat from the exhaust gas [cite: 1]. By lowering exhaust temperatures and pre-heating the boiler feed water, overall thermal efficiency is pushed up to 98% [cite: 1].

• SMART PLC TOUCH ARCHITECTURE: Fully automated operation managed by an industrial PLC system [cite: 1]. The dashboard tracks real-time steam pressures, water levels, and combustion safety profiles, featuring a user-friendly touch screen with automatic fault diagnostics [cite: 1].

• MULTI-LEVEL SAFETY CORES: Engineered with comprehensive interlocking safeguards, including automatic over-pressure relief valves, dual extreme low-water level cut-offs, flame-out sensors, and electrical leakage protection breakers [cite: 1].

---

CRITICAL APPLICATIONS IN POULTRY SLAUGHTER LINES

1. Continuous Automated Scalding: Supplies massive, steady thermal loads to automated scalding tanks, keeping water temperatures strictly constant to loosen feathers perfectly without damaging or cooking the chicken skin [cite: 1].

2. HACCP Deep Sanitization: Delivering high-pressure dry saturated steam for deep-cleaning overhead conveyor shackles, deboning tables, grading modules, and processing floors without leaving chemical residues [cite: 1].

3. Byproduct Processing & Rendering: Providing stable, high-temperature heat sources for horizontal processing cookers, feather meal processing, and chicken fat rendering lines [cite: 1].

---

SEO STRATEGY & KEYWORDS

Primary Keywords: 500kg Steam Generator, Industrial Gas Fired Boiler, Oil Fired Steam Generator, Poultry Slaughterhouse Thermal Boiler, Skid-Mounted Steam Generator [cite: 1].

Target Markets: Medium-to-large poultry processing plants, automated meat processing hubs, and commercial cold-chain facilities across Southeast Asia, Africa, and the Middle East [cite: 1].

---

CALL TO ACTION

“POWER YOUR PROCESSING LINE WITH HIGH-EFFICIENCY STEAM.”

Our 500kg/h steam generators are delivered as a complete skid-mounted package—including the automatic water treatment system (softener), heavy-duty feed pump, and built-in electrical control cabinet [cite: 1]. This plug-and-play design minimizes on-site installation costs and is fully customized to your local industrial grid (e.g., 220V 3Phase 60Hz or 380V 50Hz) [cite: 1]. Contact our thermal engineering team at Qingdao Port today for a dedicated quote and factory layout [cite: 1].

[REQUEST A CUSTOM THERMAL QUOTE]
