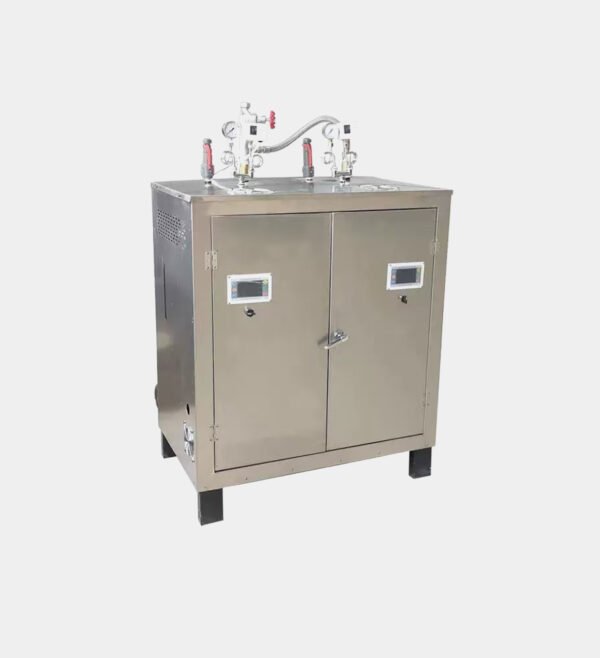

200KG Gas (Oil) Fired Steam Generator

I. Equipment Introduction

STEAM FOR POULTRY SLAUGHTER EQUIPMENT

EFFICIENT STEAM SOLUTIONS

High-performance steam for scalding, feather processing, and sterilization.

• RAPID HEATING: Reaches working pressure in 5-10 minutes.

• AUTO-CONTROL: One-touch operation, no specialized operator needed.

• DUAL-FUEL: Supports Natural Gas, LPG, or Light Diesel.

• DURABLE: Industrial 304 SS casing for harsh environments.

• SAFE & EXEMPT: Inspection-free design for quick factory setup.

---

II. RYQ-100 Technical Specifications

No.	Item	Specification
1	Model	RYQ200
2	Actual Evaporation	200 kg/h
3	Rated Working Pressure	0.7 MPa
4	Fuel Options	Natural Gas / LPG / Light Diesel
5	Thermal Efficiency	≥ 92%
6	Max Temperature	175°C
7	Fuel Consumption	NG: 8m³/h | LPG: 6kg/h | Diesel: 6kg/h
8	Water Inlet Diameter	DN15
9	Main Blowdown Diameter	DN40
10	Steam Outlet Diameter	DN20
11	Safety Valve Diameter	DN20
12	Chimney Diameter	φ133 mm
13	Dimensions	1380 * 1160 * 2080 mm
14	Rated Power	1 kW
15	Total Weight	580 kg
16	Control System	Dedicated Oil/Gas Steam Generator Controller
17	Power Supply	220V / 50HZ

---

III. Configuration List

No.	Component Name	Model/Spec	Qty	Remark
1	Boiler Body	200Type	1	Standard
2	Burner	RS10	1	Standard
3	Pressure Gauge	–	1 Set	Standard
4	Pressure Controller	–	1 Set	Standard
5	Stop Valve	DN20	1	Standard
6	Internal Connector	DN20	1	Standard
7	High-Temp Ball Valve	DN25	1	Standard
8	Filter Valve	DN15	1	Standard
9	Seamless Nipple	Φ40	1	Standard
10	Safety Valve	DN20	2	Standard
11	Water Pump	APM60	1	Standard
12	Controller	Dedicated Oil/Gas	1	Standard
13	Distribution Panel	–	1	Standard
14	Water Level Gauge	–	1	Standard
15	Ball Valve	DN25	1	Standard
16	Internal Connector	DN25	2	Standard

---

IV. Safety & Protection Features

1. Design & Structure

• Eco-Friendly & Inspection-Free: Energy-saving design that bypasses mandatory national boiler inspections.

• Automatic Water Supply: Auto-refilling triggered by low water levels.

• Overpressure Protection: Automatic shutdown if pressure exceeds limits.

• Water Shortage Protection: Prevents dry firing.

2. Protection Functions

• Premium Components: All electrical cabinet components are sourced from leading domestic brands.

• Automatic Pressure Control: Precise pressure limit management.

• Safety Valve Discharge: Automatic pressure release for fail-safe operation.

• Phase Failure Protection: Protects the electrical system from power supply irregularities.

---

V. After-Sales Service Commitment

1. Warranty: 12-month warranty from the date of contract signing (covers boiler body; excludes human error or force majeure).

2. Tracking Service: Our service department conducts phone follow-ups to monitor equipment performance and protect user interests.

3. Training: Free technical and operational training for your staff provided by our service and technical departments.

4. Life-long Support: After the warranty period, we provide lifelong maintenance; only reasonable parts fees will be charged for non-human induced failures.
