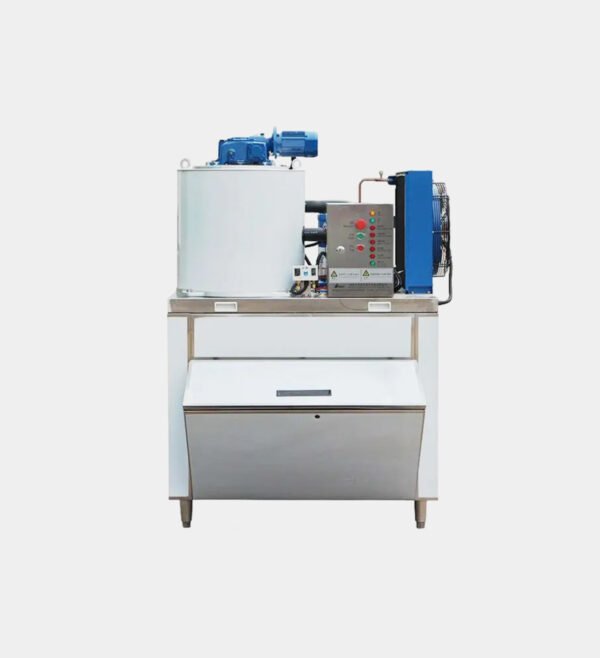

2-TON INDUSTRIAL FLAKE ICE MACHINE

2-TON INDUSTRIAL FLAKE ICE MACHINE

TECHNICAL SPECIFICATIONS

Parameter	Details
Daily Production Capacity	2,000 KG / 24 Hours
Ice Temperature	-5°C to -8°C (Dry, sub-cooled flakes)
Ice Thickness	1.5 mm – 2.2 mm (Optimized for rapid melting/cooling)
Refrigerant Options	R404A / R448A / R507 (Global environmental standards)
Compressor Brand	Bitzer (Germany) / Copeland (USA) / Hanbell
Cooling System	Water Cooled / Air Cooled (Heavy-duty condenser)
Power Consumption	7.5 kW – 9.0 kW
Voltage Configuration	220V/380V/440V (50/60Hz Customizable)
Evaporator Material	SUS304 Stainless Steel (Internal & External)
Overall Dimensions	1450 * 1100 * 1250 mm (Approx. standalone unit)

---

PRODUCT FEATURES

• CONTINUOUS REFRIGERATION LOAD: Designed for heavy-duty industrial processing. The vertical, stationary cylinder evaporator ensures zero refrigerant leakage while delivering a continuous harvest of flake ice.

• SUPERIOR HEAT EXCHANGE: Flake ice provides a massive surface-to-weight ratio. When added to poultry pre-cooling tanks, it drops the water temperature to 0°C almost instantly, halting bacterial growth on dressed carcasses.

• SKIN PROTECTION TECHNOLOGY: The dry, loose flakes have no sharp angles. They will not puncture, scratch, or bruise the chicken skin during the screw chilling or tumbling processes, preserving export-grade product appearance.

• ADVANCED PLC AUTOMATION: Fully integrated with a smart PLC control box. Features automatic safety protections for water shortage, ice bin full status, phase reversal, and compressor overload.

• 100% SANITARY CONSTRUCTION: The ice-making drum, scraping blades, and water distribution trays are all built from food-grade SUS304 Stainless Steel to pass the most rigorous food safety audits.

---

APPLICATION IN POULTRY PROCESSING LINES

1. Screw Chilling Systems: Maintained at 0–4°C to lower internal carcass temperature before portioning.

2. Byproduct Cooling: Rapidly chilling internal organs (gizzards, hearts, livers) to maintain freshness.

3. Logistics Supply Chain: Layering ice over crate-packed fresh chicken parts for transport to supermarkets or fast-food hubs.

2 Ton Flake Ice Machine, Industrial Poultry Ice Generator, Slaughterhouse Chilling Equipment, Commercial 2000kg Ice Maker, Meat Processing Cold Chain System.

---

CALL TO ACTION

“SCALE UP YOUR COOLING EFFICIENCY.”

Engineered for tropical climates and high-ambient factory environments. We configure voltage settings to match local grids (e.g., 220V 3Phase 60Hz for the Philippines). Contact us for an FOB Qingdao or CIF quotation.
