Factory Direct: 3,000 BPH Broiler Slaughtering Line Shipped to Angola
We recently completed the manufacturing, quality testing, and container loading for a complete 3,000 birds per hour (BPH) automatic broiler slaughtering line, now en route to Luanda, Angola.
This processing system is customized specifically for medium-to-large commercial poultry integrators in Southern Africa who need continuous, high-efficiency processing with minimal operational downtime.
Technical Project Overview
| Parameter | Project Specification |
| Capacity | 3,000 Birds Per Hour (BPH) |
| Target Weight | 1.4 kg – 4 kg live broilers |
| Destination | Luanda Port, Angola |
| Main Material | Food-grade SUS304 Stainless Steel |
| Power Supply Standard | Customized to Angola local grid (380V/50Hz / 3-Phase) |

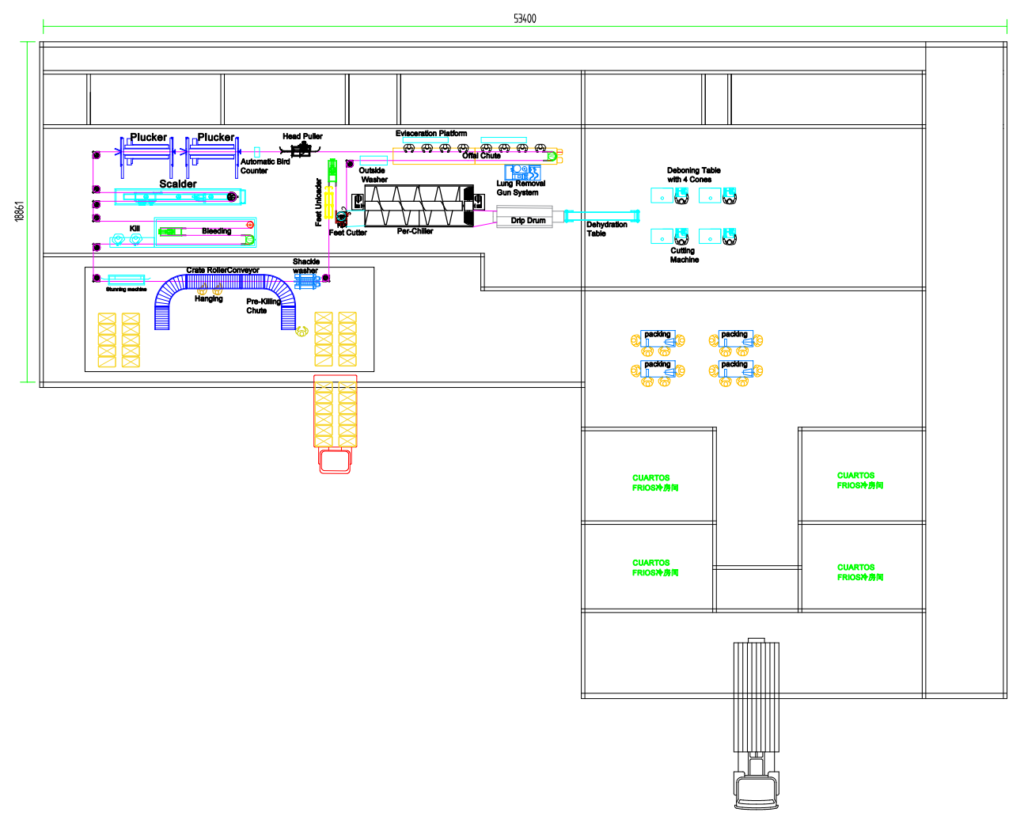

| Footprint Requirement | Approx. 65m × 12m layout area |
Core Equipment Included in This Shipment
The 3,000 BPH capacity requires a seamlessly synchronized overhead conveyor chain. Key system components packed into this shipment include:
- Defeathering & Scalding Module
- Deep-water scald tank: Equipped with high-pressure air agitation pumps to ensure heat penetrates under thick feather layers consistently.
- Counter-rotating plucker: Multi-disc configuration utilizing wear-resistant food-grade rubber fingers for complete feather removal without tearing delicate skin.
- Automated Evisceration Line
- Overhead T-rail conveyor with stainless steel shackles.
- Manual-assisted vent cutters, breast opening equipment, and automatic intestine/viscera drawing stations.
- Pre-Chilling System
- Screw pre-chiller: Large-diameter stainless steel auger with integrated air blowing system, reducing core carcass temperature below 4°C within 45 minutes to meet export and retail hygiene standards.
- Water & Waste Management
- High-pressure carcass washers, internal/external bird sprayers, and specialized stainless steel offal/feather separation channels.
Why Angolan Poultry Producers Choose Our Systems
Built for Tropical and High-Humidity Climates
Angola’s coastal and inland processing sites often deal with high humidity and voltage fluctuations. All electrical cabinets provided for this project carry IP65 water protection, integrated with Schneider/Siemens electrical components to withstand frequent washdowns and unstable supply grids.
Pre-Assembled Modular Design
To lower installation labor costs in Angola, all processing stations—from the stunner box to the chilling augers—are pre-assembled and water-tested in our factory prior to packing. Frame modules fit into standard 40ft High Cube (40HC) containers for direct field connection.

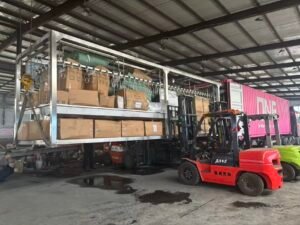

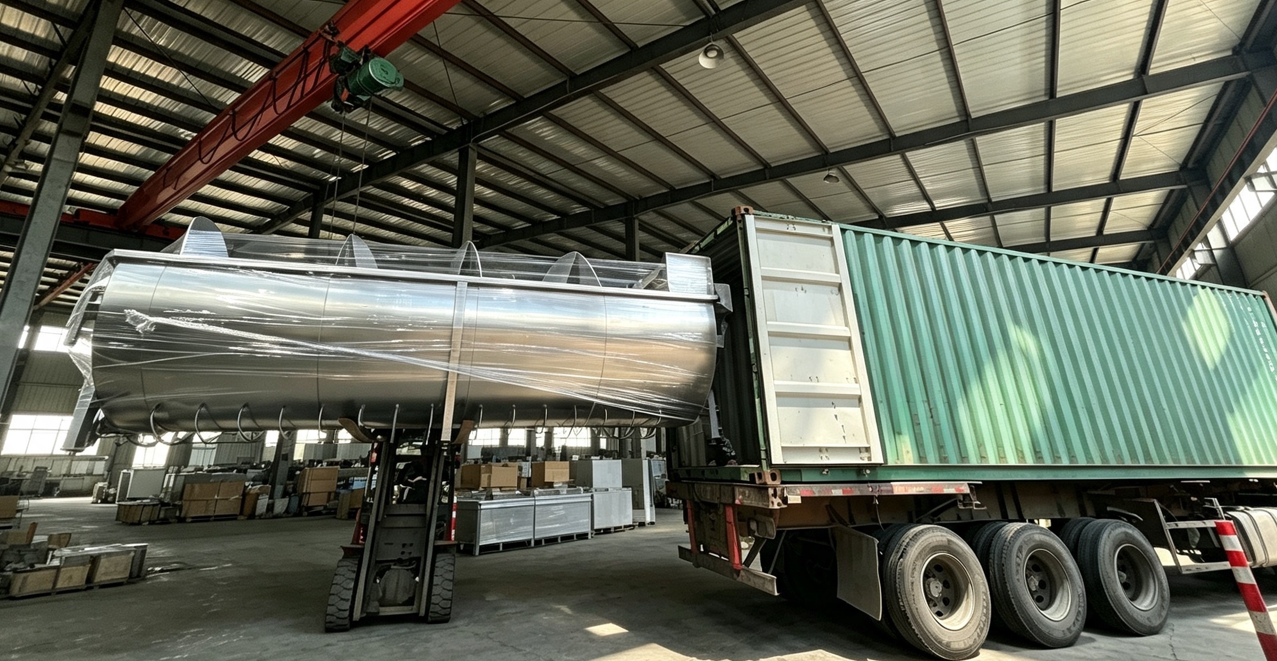

Shipment & Loading Photos
Every component was anchored using heavy-duty steel wire, customized wooden framing, and protective moisture barrier films before loading into three 40HC containers at our factory yard.
Installation & On-Site Support in Angola
Upon arrival at Luanda Port and inland transit to the client’s plant, our field engineering team will assist with:
- Foundation alignment and overhead chain leveling.
- Water inlet, drainage, and power connection setup.
- Water-load trial runs and processing speed calibration.
- On-site training for local operators covering machine maintenance and sanitation SOPs.
Looking to Upgrade Your Processing Plant in Africa?
Whether you are scaling from a manual 500 BPH slaughter house or building a new 5,000 BPH commercial plant, we provide custom layout CAD designs, complete equipment manufacturing, and international turn-key installation.
Contact our engineering sales team today for full CAD proposals and FOB/CIF quotation details.
